VAE inference walkthrough for scldm#

This notebook demonstrates single-process VAE inference: reconstructing inputs and extracting latent embeddings using Hydra configs. We focus on running the pretrained VAE on out-of-distribution (OOD) data and documenting required preprocessing (gene ID mapping).

What you’ll see:

Compose the Hydra config from experiments/configs/inference.yaml
Instantiate the datamodule and VAE model
Optionally load model weights from a checkpoint
Build a PyTorch Lightning trainer (callbacks/loggers from config)
Run inference to obtain reconstructions and latent embeddings, then save an .h5ad output

Environment and imports#

We set relevant environment variables and import the modules used for VAE inference. Imports are kept local to mimic script scoping and minimize side effects.

import os
import pathlib

# Match script behavior
os.environ["HYDRA_FULL_ERROR"] = "1"

import hydra
from omegaconf import OmegaConf

from scldm._utils import (
    process_generation_output,
    process_inference_output,
    remap_config,
    remap_pickle,
)

# Register useful resolver used in configs
try:
    OmegaConf.register_new_resolver("eval", eval)
except ValueError:
    # Already registered
    pass
print("OmegaConf resolver 'eval' registered.")

OmegaConf resolver 'eval' registered.

Compose the Hydra config#

We compose the configuration in-notebook using Hydra’s initialize/compose APIs, pointing to experiments/configs/. Here we load inference.yaml; interpolations and defaults resolve as they do in the scripts.

from hydra import compose, initialize
from omegaconf import OmegaConf

# Initialize Hydra to read from experiments/configs - use relative path
with initialize(config_path="../experiments/configs", version_base="1.2"):
    cfg = compose(config_name="inference.yaml")

print(OmegaConf.to_yaml(cfg)[:500])  # preview

paths:
  base_data_path: /mnt/czi-sci-ai/project-scg-llm-pvc/release/datasets
  base_release_path: /mnt/czi-sci-ai/project-scg-llm-pvc/release
  base_experiment_path: /mnt/czi-sci-ai/project-scg-llm-pvc/experiments/release
  dataset_paths:
    dentate_gyrus:
      train: ${paths.base_data_path}/dentategyrus_train.h5ad
      test: ${paths.base_data_path}/dentategyrus_test.h5ad
      config: ${paths.base_release_path}/fm_observational/dentate_gyrus.yaml
      ckpt: ${paths.base_release_path}/fm_ob

Instantiate datamodule and model#

We load the module configuration from cfg.config_file, apply remap_config, and instantiate:

the DataModule via hydra.utils.instantiate(cfg.datamodule.datamodule)
the VAE model specified in the config (used here for inference)

from omegaconf import OmegaConf

# Module config file path from composed cfg
module_ckpt_path = pathlib.Path(cfg.ckpt_file)
module_config_path = pathlib.Path(cfg.config_file)

print(f"Loading module config from: {module_config_path}")
module_config = OmegaConf.load(module_config_path)
remap_config(module_config)

print("Instantiating datamodule...")
datamodule = hydra.utils.instantiate(cfg.datamodule.datamodule)

print("Instantiating model from config...")
module = hydra.utils.instantiate(module_config.model.module)

print("Datamodule and model ready.")

Loading module config from: /mnt/czi-sci-ai/project-scg-llm-pvc/release/vae_census/20M.yaml
Instantiating datamodule...
INFO     No train adata path provided, make sure to set up datamodule for inference
Instantiating model from config...
Datamodule and model ready.

Using OOD data and mapping genes to Ensembl IDs#

In this example we run the pretrained VAE on out-of-distribution (OOD) data (e.g., PBMC3k) that was not seen during training. The model expects Ensembl gene IDs, so we:

Filter to genes present in the VocabularyEncoderSimplified
Map gene symbols to Ensembl IDs
Replace var_names with Ensembl IDs before inference

This ensures alignment between the OOD inputs and the model’s expected gene identifier space.

import scanpy as sc

pbmc = sc.datasets.pbmc3k()
pbmc.var["gene_symbol"] = pbmc.var_names
# Filter genes that are present in the vocabulary encoder
available_genes = [gene for gene in pbmc.var_names if gene in datamodule.vocabulary_encoder.gene_symbol_to_ensembl]
pbmc = pbmc[:, available_genes].copy()
# Convert gene symbols to ensembl IDs and assign to var_names
pbmc.var_names = [datamodule.vocabulary_encoder.gene_symbol_to_ensembl[gene] for gene in pbmc.var_names]

datamodule.adata_inference = pbmc

INFO     Filtering genes to encoder vocabulary: kept=18862, missing=17268

import torch

if module_ckpt_path.exists():
    print(f"Loading checkpoint weights from {module_ckpt_path}")
    checkpoint = torch.load(module_ckpt_path, map_location="cpu", pickle_module=remap_pickle, weights_only=False)
    state_dict = checkpoint["state_dict"] if isinstance(checkpoint, dict) and "state_dict" in checkpoint else checkpoint

    module_keys = set(module.state_dict().keys())
    filtered_state_dict = {k: v for k, v in state_dict.items() if k in module_keys}

    loaded = len(filtered_state_dict)
    skipped = len(state_dict) - loaded
    missing = len(module_keys) - loaded

    if skipped:
        print(f"Skipping {skipped} keys not present in module")
    if missing:
        print(f"Module has {missing} keys not in checkpoint")
    print(f"Loading {loaded} matching keys from checkpoint")

    module.load_state_dict(filtered_state_dict, strict=False)
else:
    print(f"Checkpoint file not found: {module_ckpt_path}")

Loading checkpoint weights from /mnt/czi-sci-ai/project-scg-llm-pvc/release/vae_census/20M.ckpt
Skipping 178 keys not present in module
Loading 178 matching keys from checkpoint

Build the Trainer, callbacks, and loggers#

We instantiate callbacks and loggers from the training section of the config and construct a PyTorch Lightning Trainer with the same options used for inference runs. Seeding and runtime tweaks match the script behavior.

import pytorch_lightning as pl
import torch

# Match script's runtime setup
torch.set_float32_matmul_precision("high")
torch._dynamo.config.capture_scalar_outputs = True
pl.seed_everything(cfg.seed)

print("Instantiating callbacks and loggers from config...")
callbacks_list = []
for cb_cfg in getattr(cfg.training, "callbacks", {}).values():
    callbacks_list.append(hydra.utils.instantiate(cb_cfg, _partial_=False))

loggers_list = []
for lg_cfg in getattr(cfg.training, "logger", {}).values():
    loggers_list.append(hydra.utils.instantiate(lg_cfg, _partial_=False))

# Trainer is provided as a partial in config; instantiate callable first
trainer_ctor = hydra.utils.instantiate(cfg.training.trainer)  # partial

trainer = trainer_ctor(
    devices=1,
    strategy="auto",
    logger=loggers_list if len(loggers_list) > 0 else False,
    callbacks=callbacks_list,
)

# Optional cache tuning, as in script
torch.cuda.empty_cache()
torch._dynamo.config.cache_size_limit = 1000

print("Trainer ready.")

Instantiating callbacks and loggers from config...
Trainer ready.

Run inference (reconstructions + embeddings) and save outputs#

This mirrors the script’s predict flow for VAE inference:

Set the module to eval and call datamodule.setup("predict")
Call trainer.predict(module, datamodule=datamodule)
Post-process with process_inference_output() to build an .h5ad containing reconstructions and latent embeddings
Save results to cfg.inference_path with dataset suffix

Note: The same code path can also run generation if configured, but this notebook focuses on inference.

# Build an override dictionary similar to the script for logging context
# Skip HydraConfig since it's not available in notebook context
override_dict = {"foo": "bar"}

# Predict flow
if cfg.model.module.generation_args is not None or cfg.model.module.inference_args is not None:
    module.eval()
    datamodule.setup("predict")
    output = trainer.predict(module, datamodule=datamodule)

    if cfg.model.module.generation_args is not None:
        adata = process_generation_output(output, datamodule)
    else:
        adata = process_inference_output(output, datamodule)

    inference_type = "generated" if cfg.model.module.generation_args is not None else "inference"
    adata.obs["generation_idx"] = cfg.dataset_generation_idx
else:
    print("No generation_args or inference_args specified in the config; skipping predict.")

Tracking run with wandb version 0.22.1

Run data is saved locally in /mnt/czi-sci-ai/project-scg-llm-pvc/experiments/release/wandb_logger/wandb/run-20251006_164712-lfu83yhf

Syncing run volcanic-firefly-25 to Weights & Biases (docs)

View project at https://wandb.ai/scg-vae/inference_test

View run at https://wandb.ai/scg-vae/inference_test/runs/lfu83yhf

INFO     Processing inference output

Customization tips#

To switch datasets or models, adjust overrides when composing the config or edit experiments/configs/inference.yaml.
Control behavior via model.module.inference_args (default here). generation_args can be used when running generation instead.
Output location and naming are controlled by inference_path, datamodule.dataset, and dataset_generation_idx.

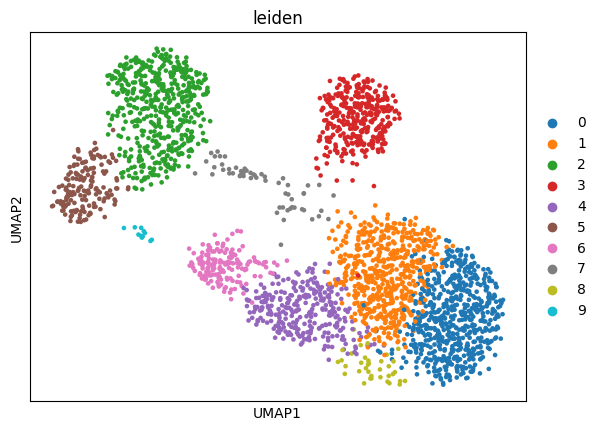

import scanpy as sc

sc.pp.normalize_total(adata)
sc.pp.log1p(adata)
sc.pp.pca(adata)
sc.pp.neighbors(adata)
sc.tl.umap(adata)
sc.tl.leiden(adata)
sc.pl.umap(adata, color="leiden")
